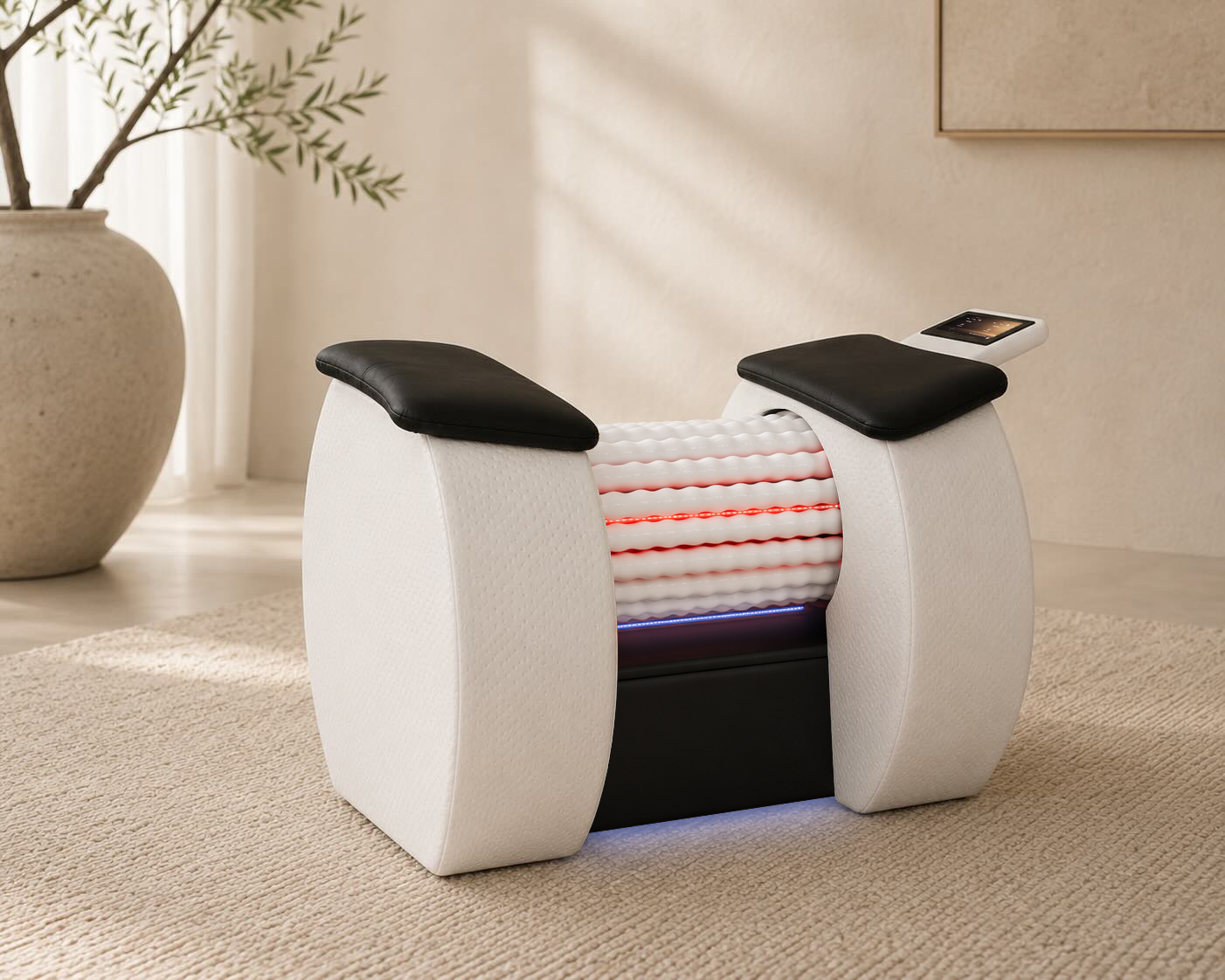

Infrared Body Roll
Discover the power of Body Space® Body Roll - where InfraRed technology meets professional roller massage for deep recovery and body renewal
Body Roll is a professional lymphatic massage device that combines mechanical roller stimulation with InfraRed technology to support deep body recovery, circulation, and cellular regeneration. Each session helps eliminate toxins, reduce fluid retention, and restore the body's natural balance - with visible effects on skin firmness and body contour. Designed for studios and wellness centers that offer more than just fitness.
Engineered With
Body Roll by Body Space® elevates the standard roll massage. While you massage, InfraRed and Red Light Therapy work in sync - supporting circulation, lymphatic drainage, recovery, and skin vitality. No standard roll massage comes close.
Engineered With
Body Roll by Body Space® elevates the standard roll massage. While you massage, InfraRed and Red Light Therapy work in sync - supporting circulation, lymphatic drainage, recovery, and skin vitality. No standard roll massage comes close.

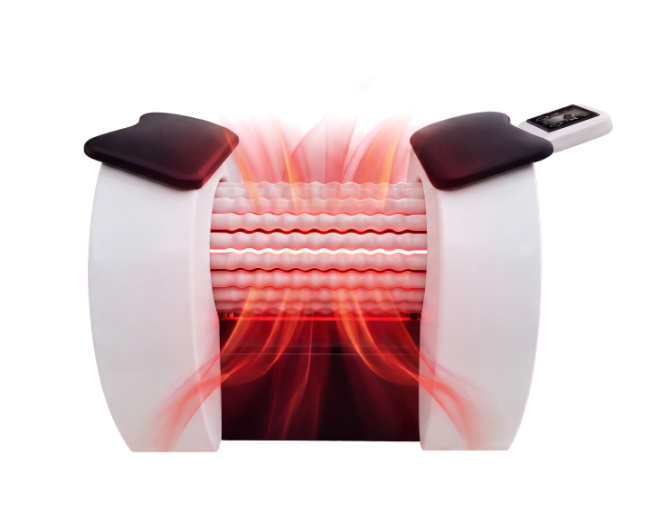

InfraRed Technology
Ignite Your Inner Potential
Heat that goes where it's needed. InfraRed Technology penetrates deep into body tissue, warming muscles and supporting circulation from within - so as the rollers move, the warmth moves with them, enhancing every inch of the session.
Body Space® Massage Performance Scale
up to 1000nm
IR-A (NIR) Emission
THE BENEFITS OF INFRARED TECHNOLOGY IN BODY ROLL
- Deepens the massage effect by warming tissue from within
- Boosts circulation & lymphatic drainage throughout the session
- Activates natural detox & cellular renewal
- Supports body contouring & natural slimming processes
- Supports muscle recovery & post-workout relaxation
- Helps ease muscle and joint stiffness
- Enhances skin firmness & smoothness
- Restores energy & reduces fatigue
InfraRed Technology
Ignite Your Inner Potential
Heat that goes where it's needed. InfraRed Technology penetrates deep into body tissue, warming muscles and supporting circulation from within - so as the rollers move, the warmth moves with them, enhancing every inch of the session.
up to 1000nm
Peak IR-A (NIR) Emission
Body Space® Massage Performance Scale
THE BENEFITS OF INFRARED TECHNOLOGY IN BODY ROLL
- Deepens the massage effect by warming tissue from within
- Boosts circulation & lymphatic drainage throughout the session
- Activates natural detox & cellular renewal
- Supports body contouring & natural slimming processes
- Supports muscle recovery & post-workout relaxation
- Helps ease muscle and joint stiffness
- Enhances skin firmness & smoothness
- Restores energy & reduces fatigue

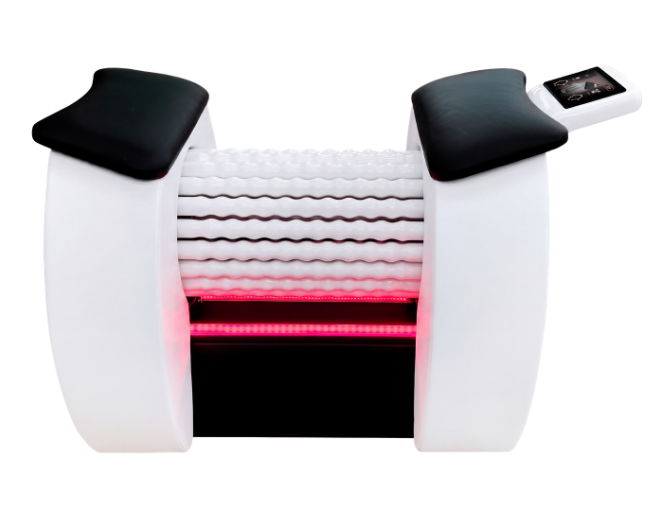

Collagen Technology
Reveal Your Natural Radiance
640–670 nm wavelength
Triggers collagen synthesis
5–10 mm skin penetration
Collagen

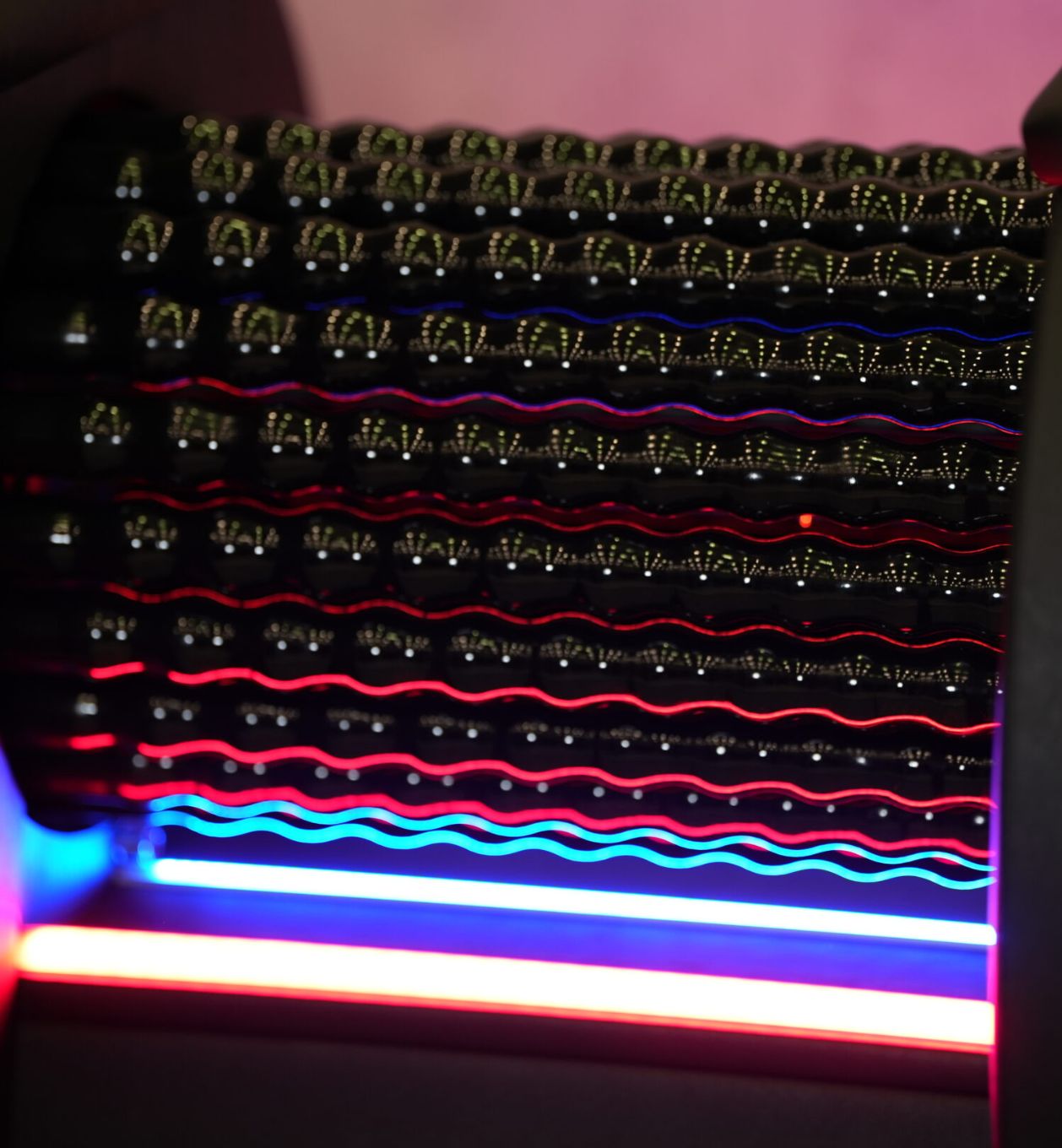

2× Collagen Red Light LED strips — precision light therapy
Photobiomodulation at work
Reduces fine lines & wrinkles
Visible red light spectrum
Collagen Technology
Reveal Your Natural Radiance
640–670 nm wavelength
Visible red light spectrum
5–10 mm skin penetration
Photobiomodulation at work
Triggers collagen synthesis
Reduces fine lines & wrinkles
Collagen
2× Collagen Red Light LED strips — precision light therapy
Detox. Recover. Glow.
This is what real recovery feels like.
Lymphatic drainage
promotes detox, recovery, and longevity
Cellulite reduction
smooths skin and breaks down fat deposits
Body firming
shapes thighs, buttocks, and arms
Muscle recovery
shapes thighs, buttocks, and arms
Relaxation & mood boost
deep relaxation and enhanced well-being
One panel.
Every parameter of the session.

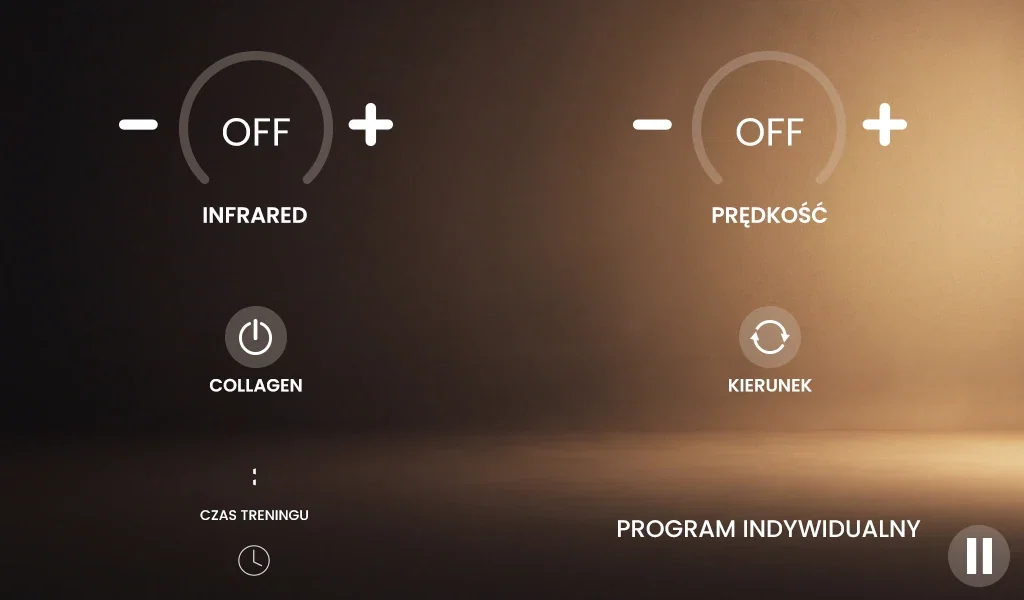

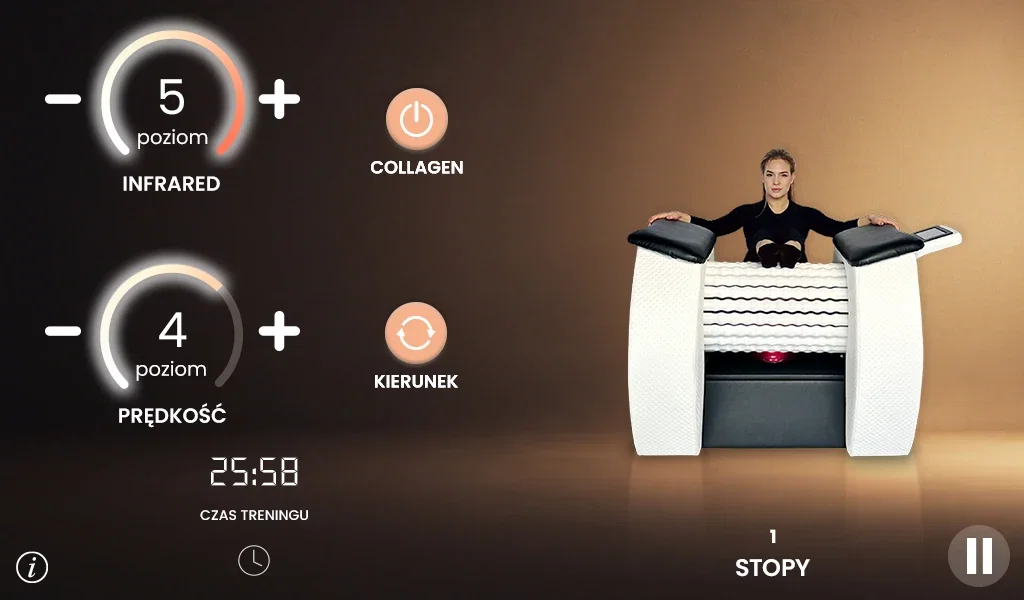

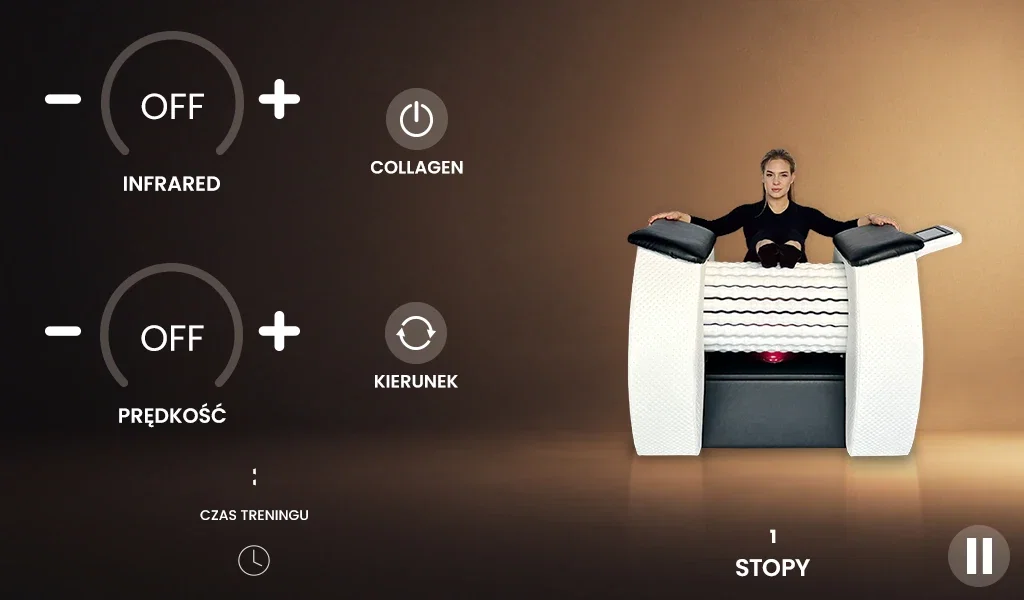

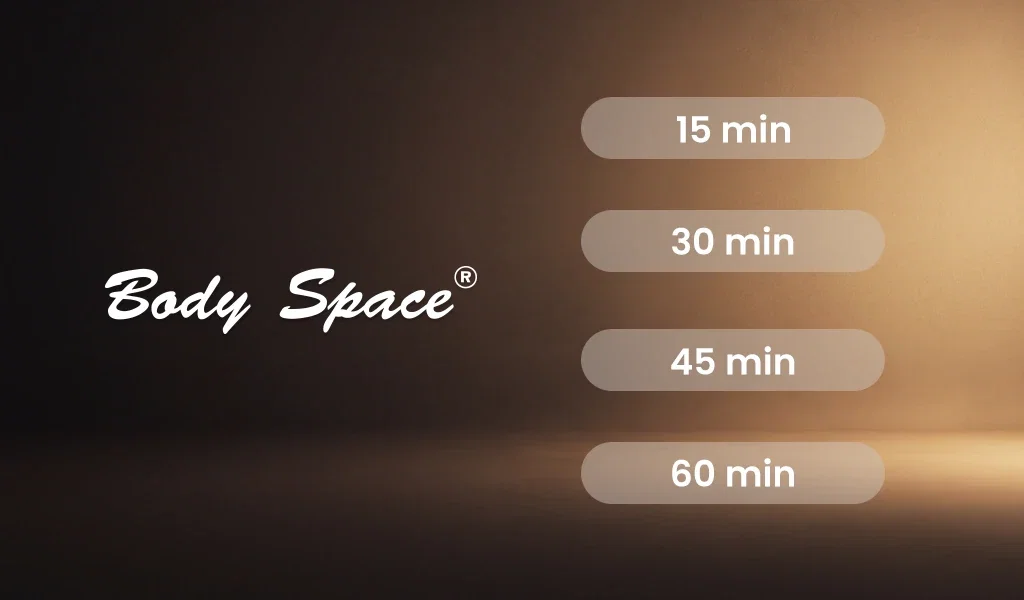

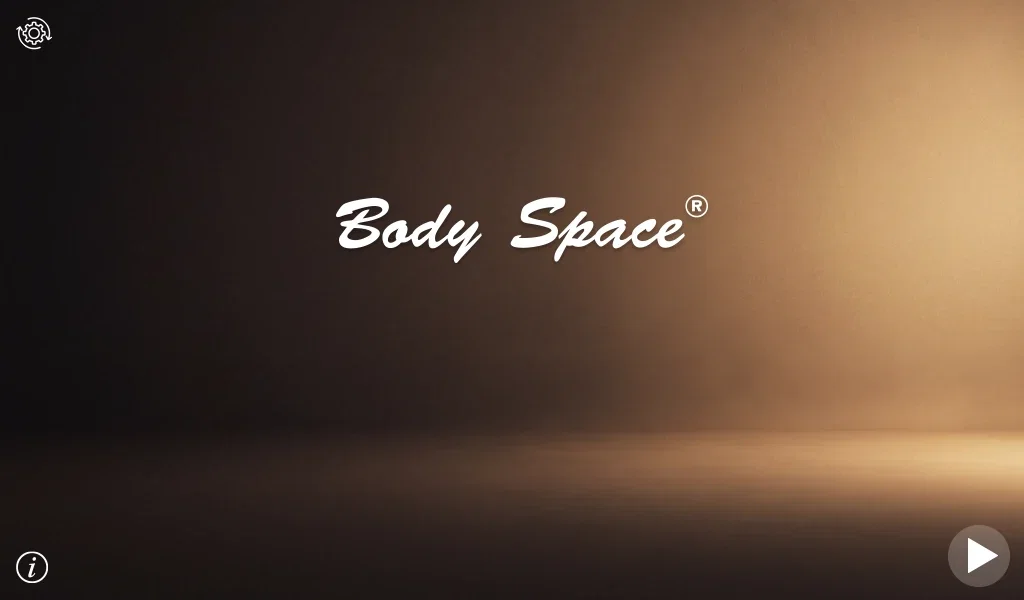

An 8″ touchscreen sets the programme, the session length and every parameter that follows - infrared level, drum speed, roller direction and Collagen light. Tap through the screen to see how a session is built.

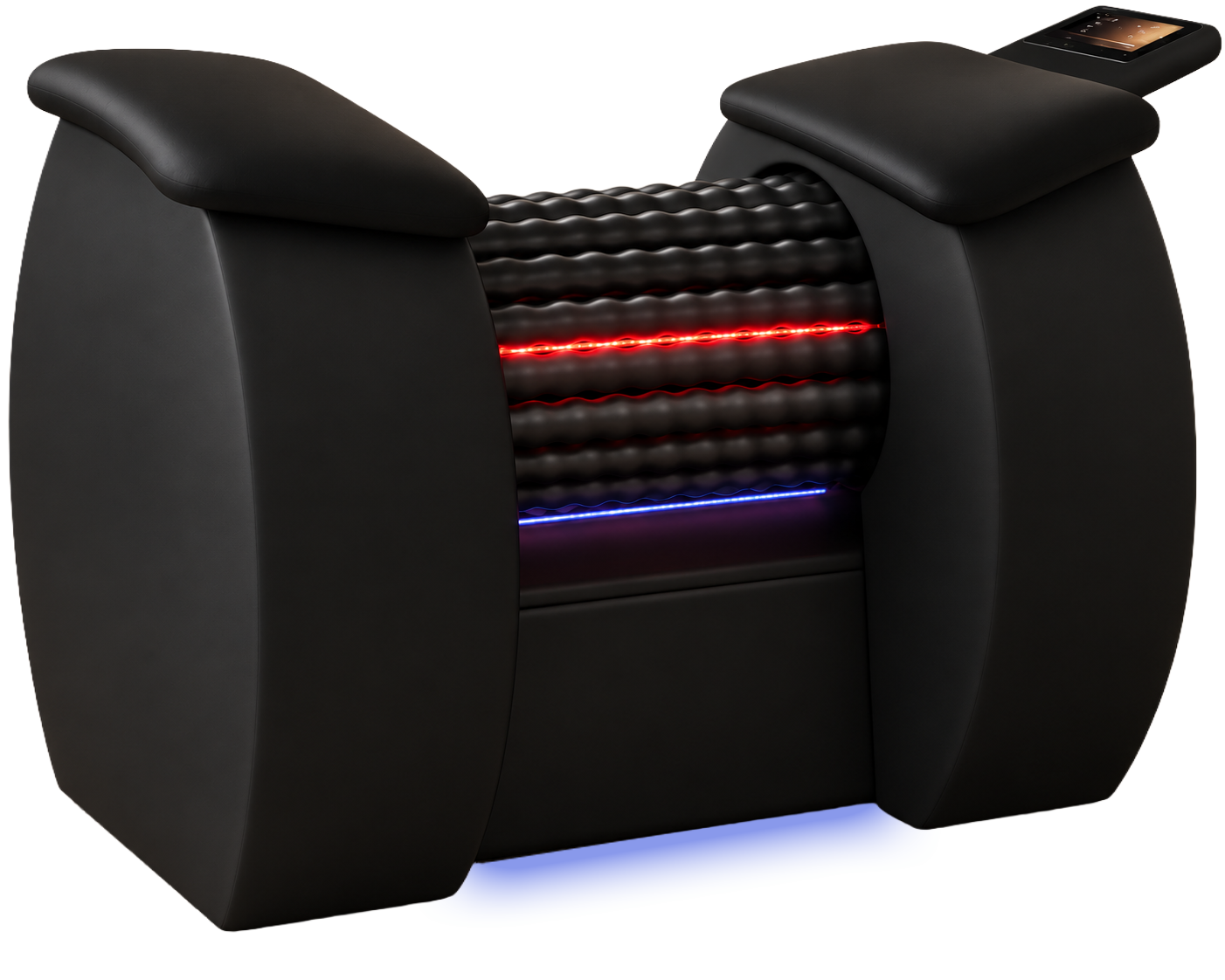

Infrared Body Roll Specification
Full-spectrum InfraRed
Peak emission ~1000 nm (IR-A | NIR)
Collagen Red Light Therapy
Wavelength 640–670 nm

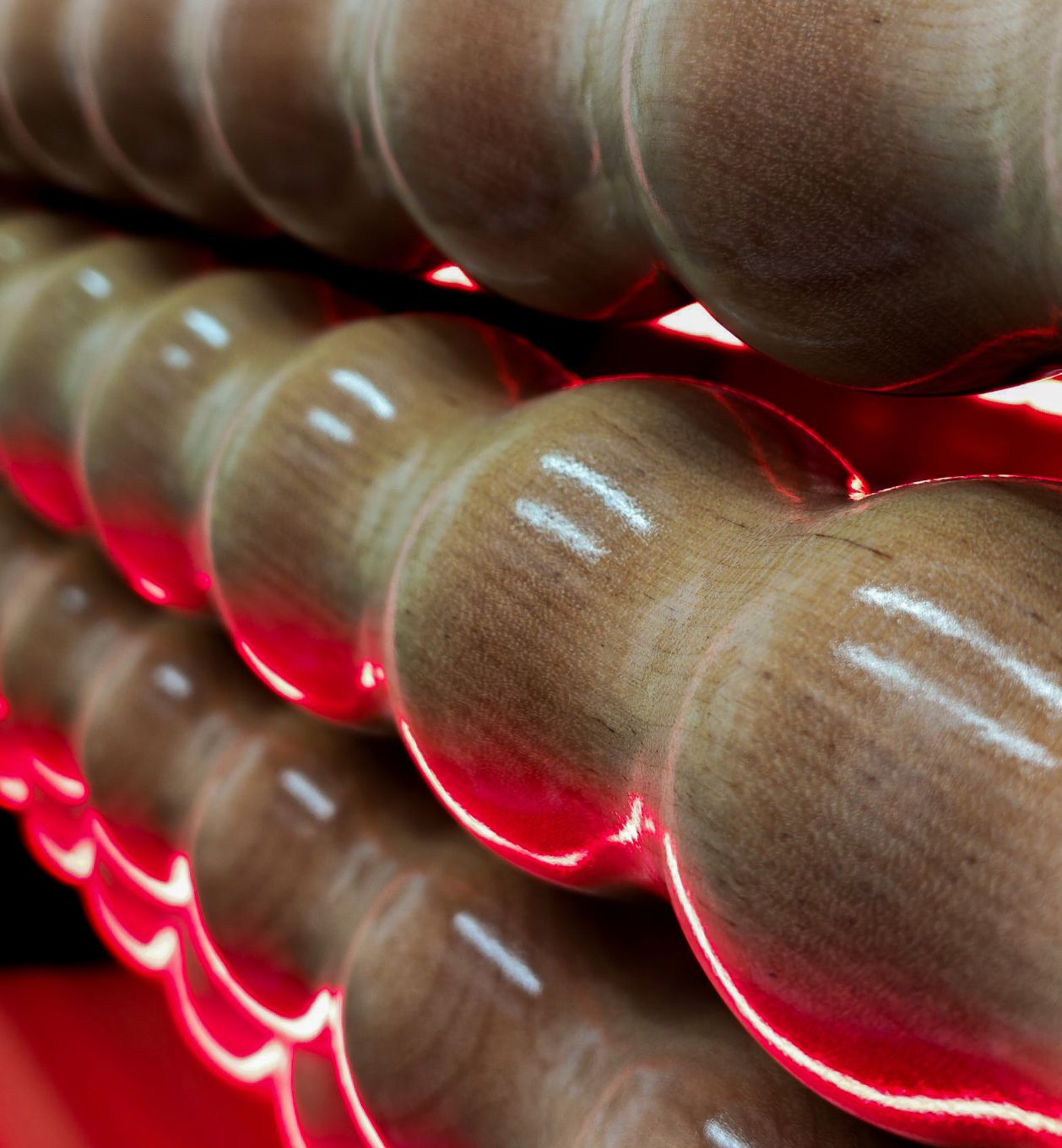

20 Solid Wood Rollers
Natural wood, hand-finished surface
Bi-Directional Rollers
Switchable drum rotation direction
17 Massage Positions
Guided positioning for full-body work
6 Massage Intensity Levels
Adjustable for a personalised session
Ambient LED Lighting
Adjustable colour light that sets a calm, immersive mood
Studio Management Integration
Device control, session tracking and client management
Technical Data
Manufacturer
Body Space® – Poland

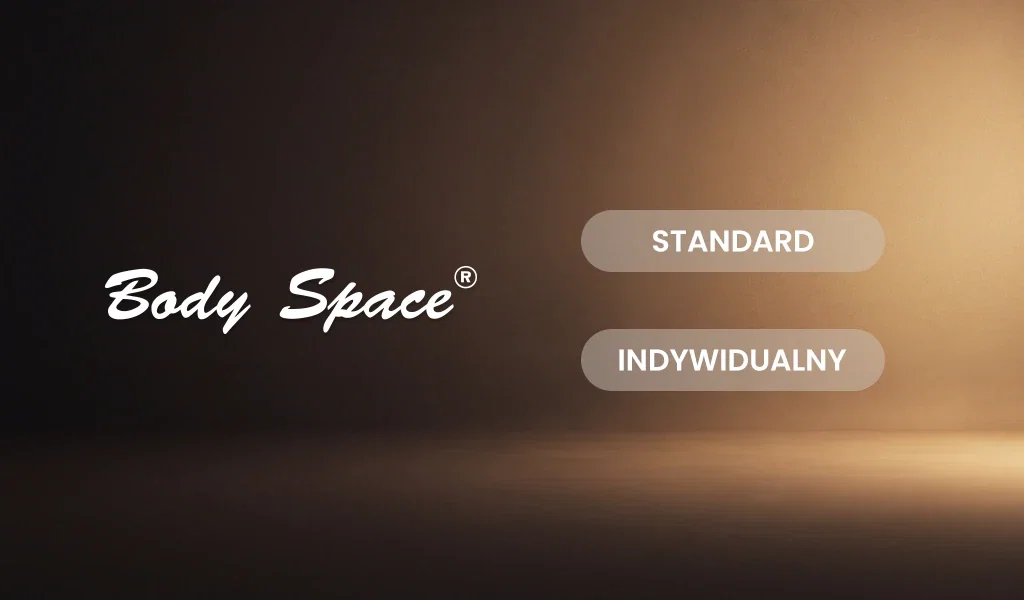

Programs
Standard – 17 massage positions in an automatic sequence.

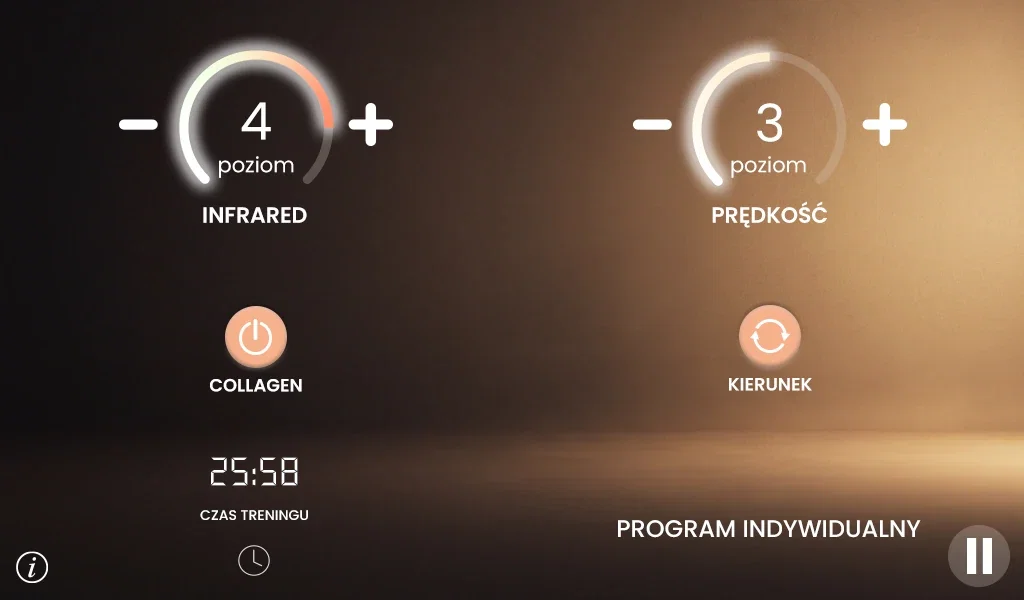

Individual – manual selection of massage positions without a preset sequence.
InfraRed Technology
up to 1000 nm IR-A (NIR) Emission

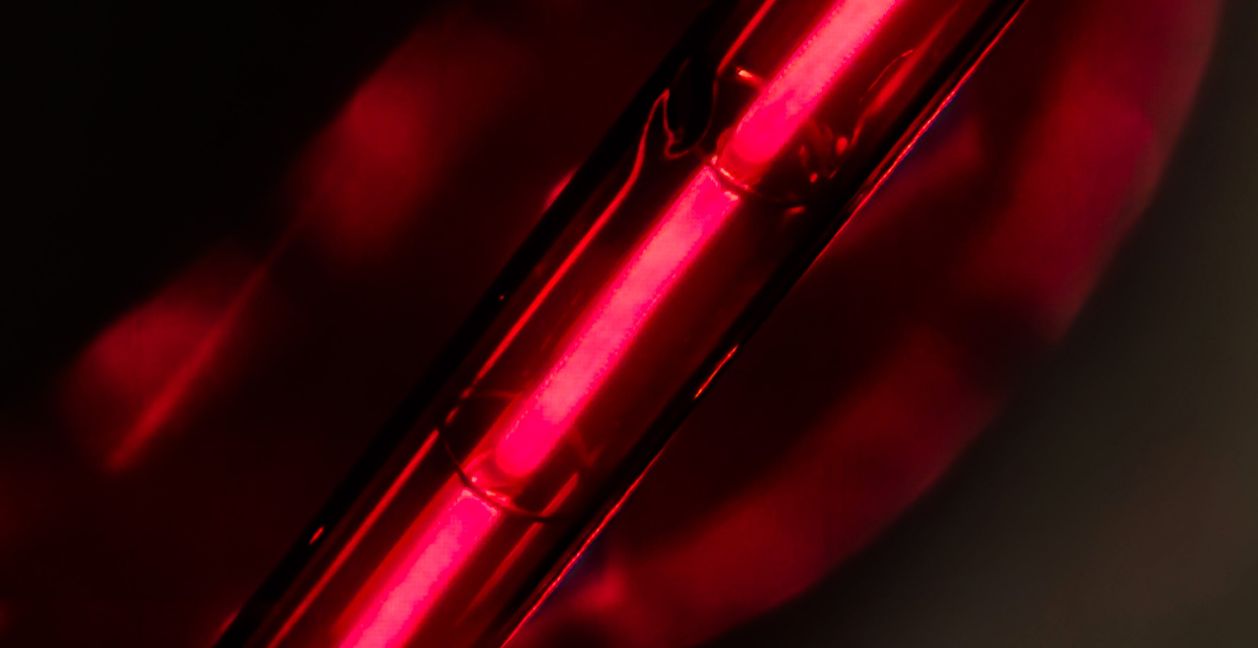

InfraRed System

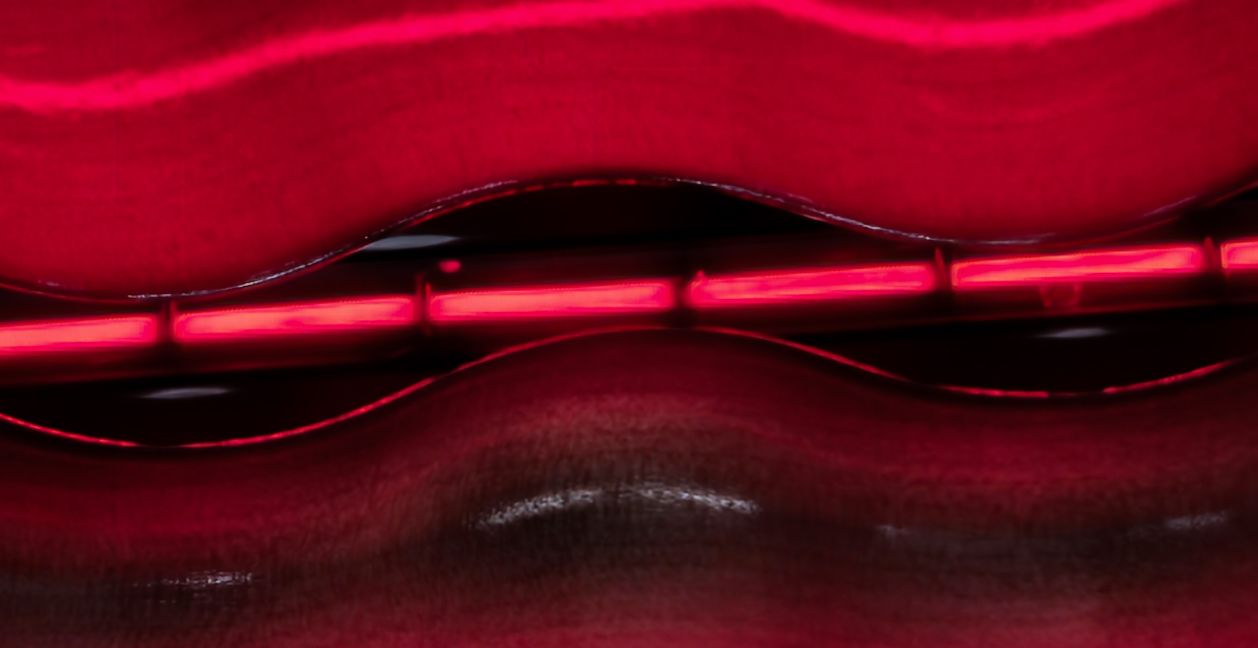

500 W InfraRed Ruby Lamp
InfraRed Intensity
0-5 levels
Collagen Technology
Red Light Therapy (640–670 nm)
Collagen System
15W LED system (2 × 55 cm / 21.7 in; 66 LEDs)
Collagen Control
Independent ON/OFF switch

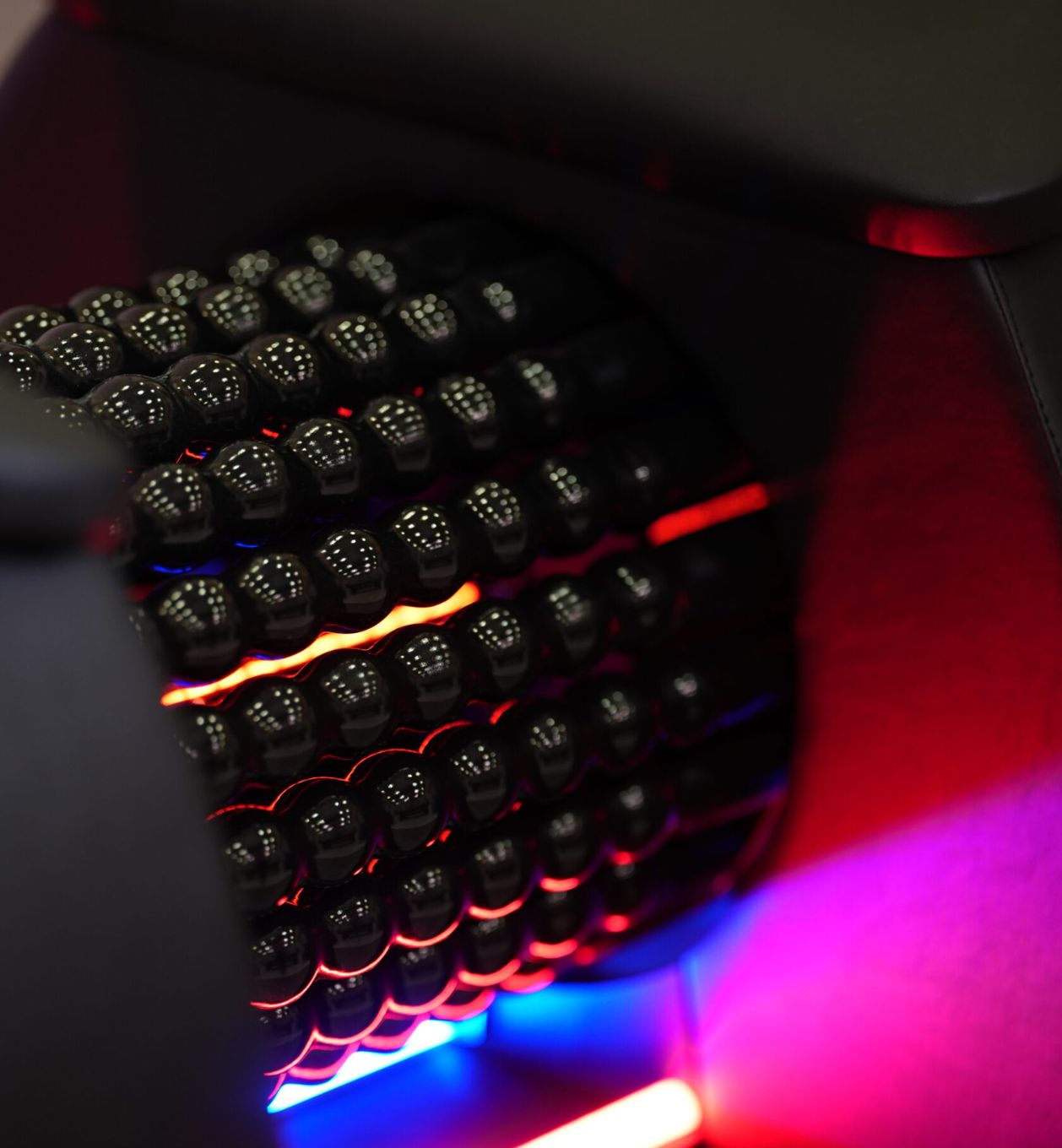

Massage Drum
20 solid wood rollers, lacquered
Drum Rotation Speed
6 levels
Roller Rotation Direction
Adjustable

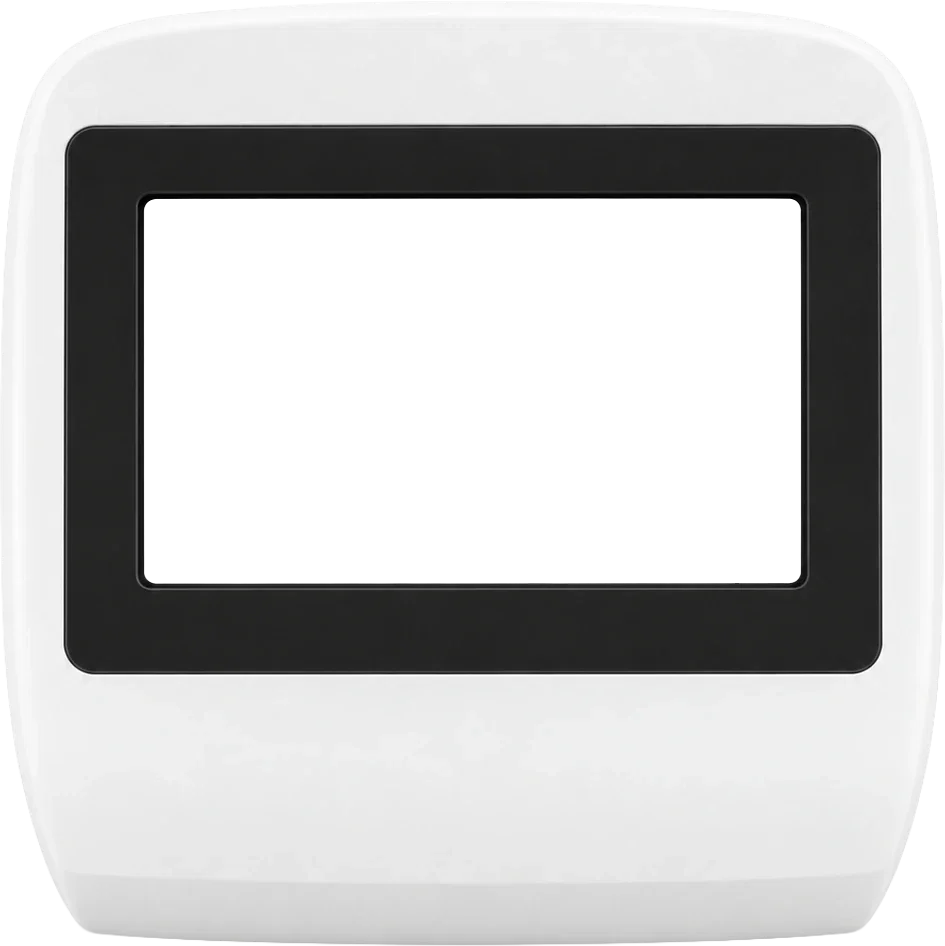

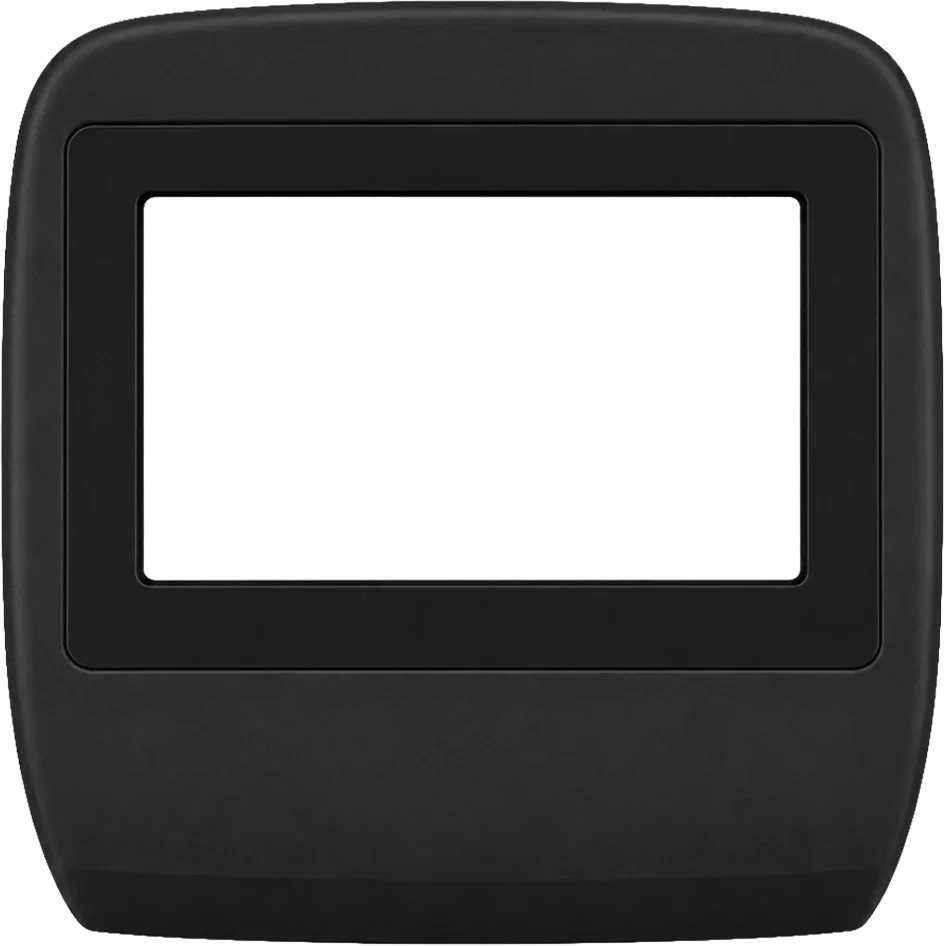

Main Display
8" LCD touchscreen
Maximum User Weight
120 kg (265 lb)
Power Consumption
Max 0.7 kW
Motor
140 W three-phase AC squirrel-cage induction motor with inverter control
230 V / 50 Hz | 110 V / 60 Hz available
Short-Circuit Protection
C10 A

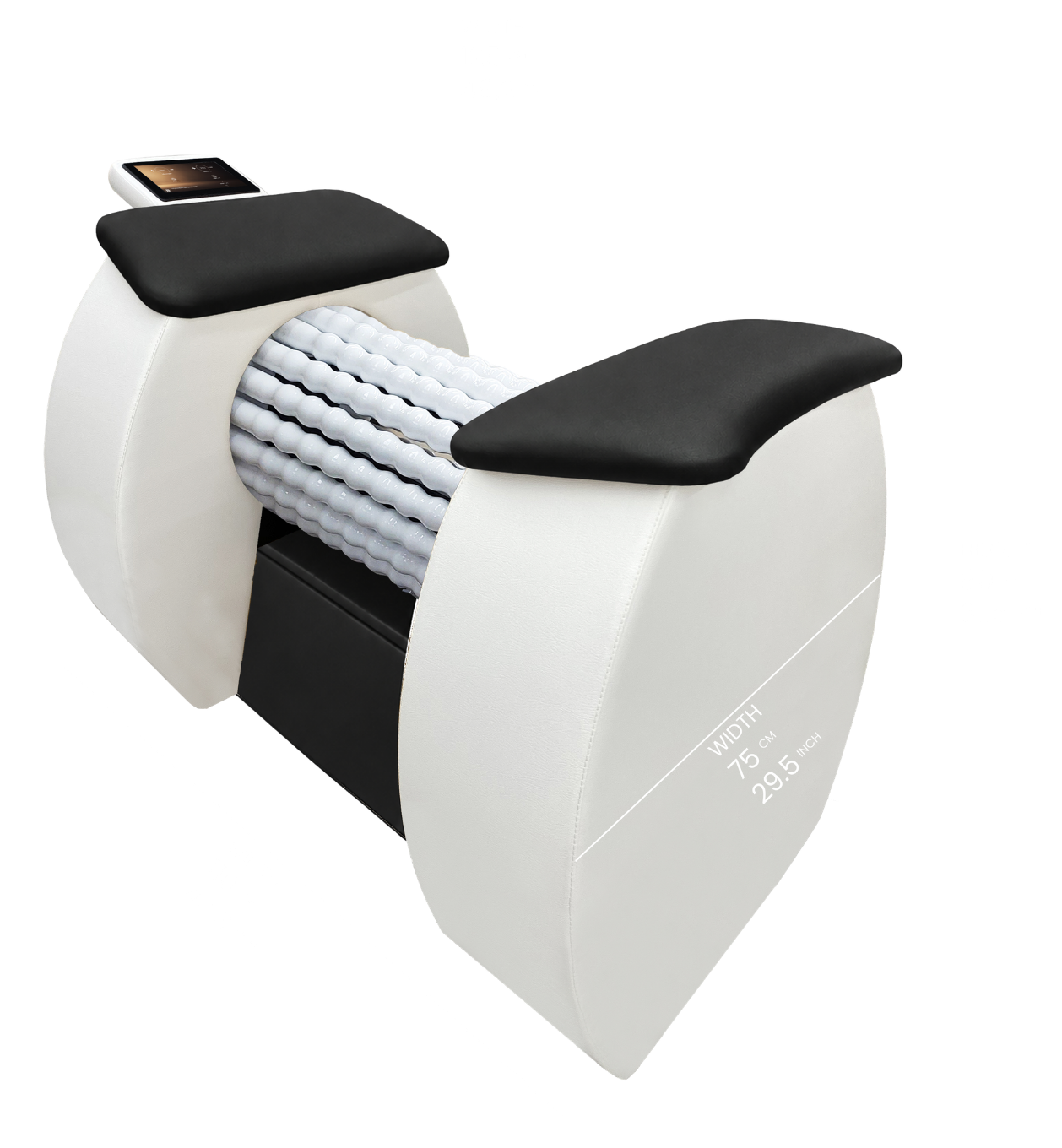

Dimensions
Length: 110 cm (43.3 in) without control panel; 125 cm (49.2 in) with control panel.
Width: 75 cm (29.5 in)
Height: 80 cm (31.5 in)
Device Weight
91 kg (201 lb)
Included Accessories
Mat and poster
Additional Features
Ambient LED lighting
Certifications
CE, TÜV NORD
Why do Investors choose Body Roll by Body Space®
Proven bestseller
This lymphatic drainage device is highly popular among clients and generates steady traffic in body contouring studios.
Quick return on investment
High profitability of treatments and short session times maximize the device’s potential.
Technology that sells
The combination of roller massage and InfraRed attracts clients seeking modern, fast and effective solutions.
Professional Body Space® quality
Body Space® slimming devices are designed and manufactured in Poland for intensive commercial use.
Easy operation and personalization
Intuitive controls and the ability to customize the device’s appearance to match your studio interior.
Partner support
We provide consulting, marketing materials, and business development assistance from day one of our collaboration.
Make recovery your signature service.
Offer your clients deep lymphatic massage powered by InfraRed technology - the wellness ritual they didn't know they needed. Perfect for spas, beauty clinics, wellness centers, gyms, and body studios.
Your Body Roll in 3 steps
From expert consultation to your first satisfied client - we make equipping your studio effortless.
1
Contact & Consult
Get in touch with our expert team. We’ll analyze your needs and help you choose the best Body Space® solutions for your business model.
2
Customize & Order
Select your colors, leather finish.
Configure the device to match your studio’s interior design perfectly.
3
Launch & Monetize
Receive your device, comprehensive training, and marketing support. Start offering treatments, simply plug in and start rolling.
Popular Studio Combinations
See what successful studios add together

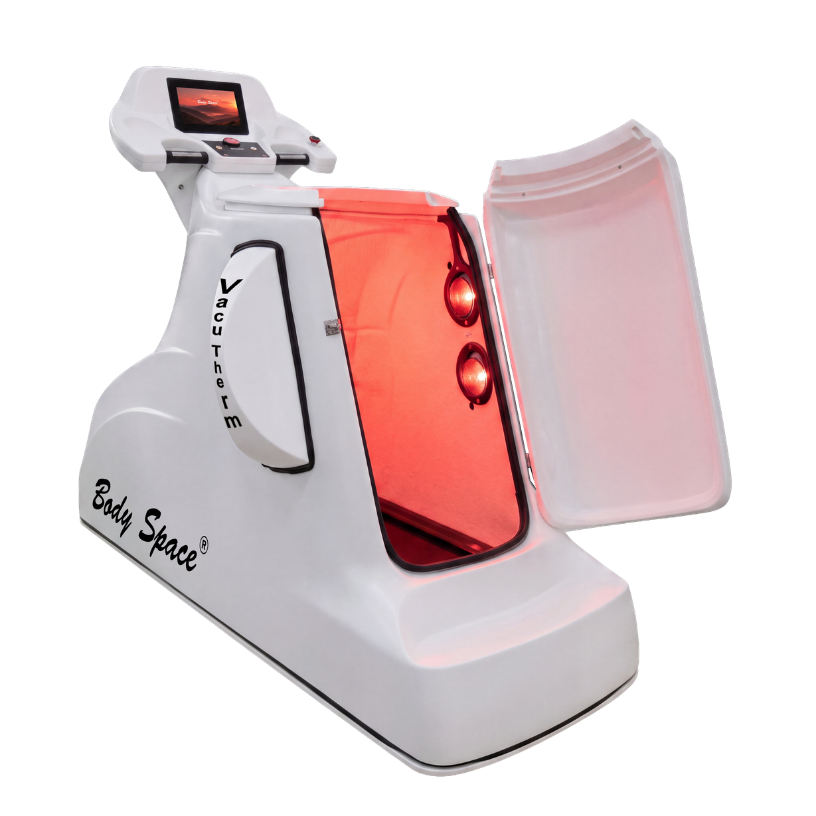

VacuTherm Treadmill
The perfect workout before your Body Roll session.
VacuTherm Recline Bike
The gentler workout that sets the stage for Body Roll recovery
Frequently asked questions
Find quick answers to the most common questions about our equipment, technology, and how to maximize results in your studio.
Regular sessions help reduce cellulite, shape the body, improve skin firmness, and support lymphatic drainage and muscle recovery. Body Roll is a next-generation InfraRed body shaping machine designed for effective and visible results.
Yes. Body Roll is certified with CE and TÜV NORD, and its adjustable massage and InfraRed intensity allow treatments to be tailored to each client’s needs.
Body Roll is ideal for beauty salons, spas, modern body contouring studios, and fitness clubs, suitable for both active clients and those starting their journey to better fitness. It’s a part of Body Space’s ® line of professional gym equipment.
